Walk-forward testing

AmiBroker 5.10 features the automatic Walk-Forward test mode.

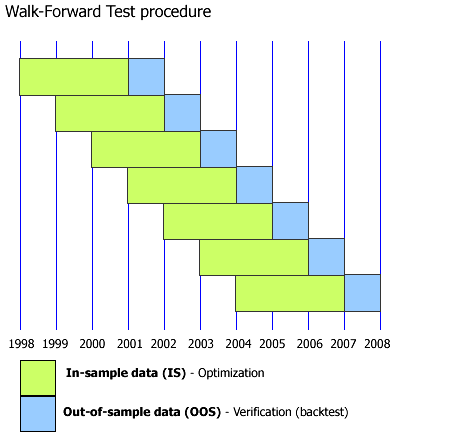

The automatic walk-forward test is a system design and validation technique in which you optimize the parameter values on a past segment of market data (”in-sample”), then verify the performance of the system by testing it forward in time on data following the optimization segment (”out-of-sample”). You evaluate the system based on how well it performs on the test data (”out-of-sample”), not the data it was optimized on. The process can be repeated over subsequent time segments. The following illustration shows how the process works.

The purpose of a walk-forward test is to determine whether the performance of an optimized trading system is realistic or the result of curve-fitting. The performance of the system can be considered realistic if it has predictive value and performs well on unseen (out-of-sample) market data. When the system is properly designed, the real-time trading performance should be consistent with that uncovered during optimization. If the system is going to work in real trading, it must first pass a walk-forward test. In other words, we don't really care about in-sample results, as they are (or should be) always good. What matters is out-of-sample system performance. It is a realistic estimate of how the system would work in real trading and will quickly reveal any curve-fitting issues. If out-of-sample performance is poor, then you should not trade such a system.

The premise of performing several optimization/test steps over time is that the recent past is a better foundation for selecting system parameter values than the distant past. We hope that the parameter values chosen on the optimization segment will be well suited to the market conditions that immediately follow. This may or may not be the case as markets go through bear/bull cycles, so care should be taken when choosing the length of the in-sample period. For more information about system design and verification using the walk-forward procedure and all issues involved, we recommend Howard Bandy's book: "Quantitative Trading Systems" (see links on AmiBroker page).

To use walk-forward optimization, please follow these steps:

  1. Go to Tools->Automatic Analysis

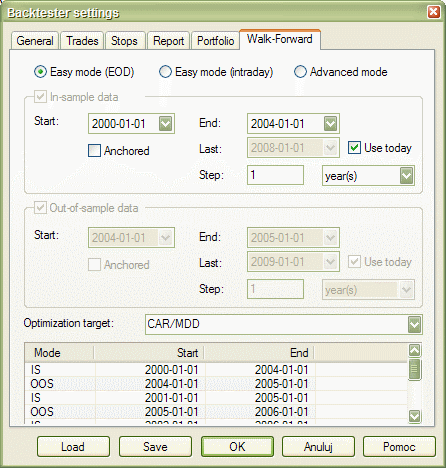

  2. Click the Settings button, then switch to the Walk-Forward tab


  3. Here you can see walk-forward settings for in-sample optimization and out-of-sample backtest.

    Start     and End dates mark the initial period's beginning/end
    This period will be moved forward by Step until the End reaches the Last date.

    The Start date can move forward by Step too, or can be anchored (constant) if the Anchored checkbox is selected.

    If you select Use Today, then the Last date entered will be ignored, and Today (current date) will be used instead.
    By default, an “EASY MODE” is selected, which simplifies the process of setting up WF parameters.

    It assumes that:
    a) The out-of-sample segment immediately follows the in-sample segment.
    b) The length of the out-of-sample segment equals the walk-forward step.

    Based on these two assumptions, the “EASY” mode takes the in-sample END date and sets the out-of-sample START date to the following day. It then adds the in-sample STEP, and this becomes the out-of-sample END date.

    In-sample and out-of-sample step values are set to the same values. The “EASY” mode guarantees the correctness of WF procedure settings.

    You should use Easy mode (EOD) when testing on end-of-day data or Easy mode (Intraday) when testing on intraday data. The difference is that in EOD mode, the END date of the previous period and the START date of the next period are the same, thus avoiding a gap
    between periods. Intraday mode sets the START date of the next period as the NEXT DAY after the END of the previous period. That guarantees
    that the boundary day is not counted twice when testing on intraday data.

    In the Advanced mode, the user has complete control over all values, to the extent that they may not constitute a valid WF procedure.
    The interface allows selectively disabling in-sample and out-of-sample phases using checkboxes at the top (for special things like running sequential backtests without optimization).
    All settings are immediately reflected in the Preview list that shows all generated IS/OOS segments and their dates.
  4. The “Optimization target” field defines the optimization report column name that
    will be used for sorting results and finding the best one. Any built-in column can be used
    (as it appears in the optimization output), or you can use any custom metric that you define
    in your custom backtester. The default is CAR/MDD; you can, however, select any other built-in metric from the combo box.
    You can also type in any custom metric that you have added via the custom backtester interface.
  5. Once you have defined walk-forward settings, please go to Automatic Analysis and
  6. press the dropdown arrow on the Optimize button and select “Walk Forward Optimization”

    This will run a sequence of optimizations and backtests, and the results will be displayed in the “Walk Forward” document that is open in the main application frame. When optimization is running, you can click the “MINIMIZE” button on the Progress dialog to minimize it. This allows you to see the Walk Forward output during the optimization steps.

IN-SAMPLE and OUT-OF-SAMPLE combined equity

Combined in-sample and out-of-sample equities are available via ~~~ISEQUITY and ~~~OSEQUITY composite tickers (consecutive periods of IS and OOS are concatenated and scaled to maintain continuity of the equity line - this approach assumes that you, generally speaking, are compounding profits).

To display IS and OOS equity, you may use, for example, this:

PlotForeign("~~~ISEQUITY","In-Sample Equity", colorRed, styleLine);
PlotForeign("~~~OSEQUITY","Out-Of-Sample Equity", colorGreen, styleLine);
Title = "{{NAME}} - {{INTERVAL}} {{DATE}} {{VALUES}}";

OUT-OF-SAMPLE summary report (new in 5.60)

Version 5.60 brings a new walk-forward summary report that covers all out-of-sample steps. It is visible in the Report Explorer as the last one and has "PS" type.
There were significant changes to walk-forward testing made to allow a summary out-of-sample report. The most important change is that each subsequent out-of-sample test uses initial equity equal to the previous step's ending equity. (Previously, it used constant initial equity.) This change is required for proper calculation of all statistics/metrics throughout all sections of the out-of-sample test.

The summary report shows a note that built-in metrics correctly represent all out-of-sample steps, but summary custom metrics are composed using a user-definable method:
1. first step value, 2. last step value, 3. sum, 4. average, 5. minimum, 6. maximum.

By default, the summary report shows the last step value of custom metrics UNLESS the user specifies a different combining method in
bo.AddCustomMetrics() call.

bo.AddCustomMetrics now has a new optional parameter - CombineMethod

bool AddCustomMetric( string Title, variant Value, [optional] variant LongOnlyValue, [optional] variant ShortOnlyValue , [optional] variant DecPlaces = 2, [optional] variant CombineMethod = 2 )

This method adds a custom metric to the backtest report, backtest "summary", and the optimization result list. Title is the name of the metric to be displayed in the report, Value is the value of the metric. Optional arguments LongOnlyValue, ShortOnlyValue allow providing values for additional long/short-only columns in the backtest report. The last argument, DecPlaces, controls how many decimal places should be used to display the value.

Supported CombineMethod values are:
1. First step value - the summary report will show the value of the custom metric from the very first out-of-sample step.
2. Last step value (default) - the summary report will show the value of the custom metric from the last out-of-sample step.
3. Sum - the summary report will show the sum of the values of the custom metric from all out-of-sample steps.
4. Average - the summary report will show the average of the values of the custom metric from all out-of-sample steps.
5. Minimum - the summary report will show the smallest value of the custom metric from all out-of-sample steps.
6. Maximum - the summary report will show the largest value of the custom metric from all out-of-sample steps.

Note that certain metrics calculation methods are complex, and, for example, averaging them would not lead to a mathematically correct representation of all out-of-sample tests. Summaries of all built-in metrics are mathematically correct out-of-the-box (i.e., they are *not* averages but properly calculated metrics using a method that is appropriate for a given value). This contrasts with custom metrics, because they are user-definable, and it is up to the user to select a 'combining' method. Still, it may happen that none of the available methods is appropriate.
For that reason, the report includes a note that explains what user-definable method was used to combine custom metrics.
