Using graph styles, colors, titles and parameters in Indicators

AmiBroker provides customizable styles and colors of graphs in custom indicators. These features allow more flexibility in designing your indicators. This article will explain how to use styles and colors. It will also explain how to define the chart title that appears at the top of the chart.

Plot() function

Plot is the function used to plot a chart. It takes 9 parameters, of which the first 3 are required.

Plot( array, name, color, style = styleLine, minvalue = Null, maxvalue = Null, XShift = 0, ZOrder = 0, width = 1 )

• array parameter represents data to be plotted,

• name parameter defines the name of the graph (used in title string to show the values of the indicator),

• color parameter defines the plot color,

• style defines "the look" of the chart (i.e. line/histogram/candlestick/bar, etc). The default style is line.

• minvalue and maxvalue are rarely used parameters that define hard-coded minimum and maximum values used when the graph uses "independent" scaling, i.e. styleOwnScale is specified in style parameter. Usually, you don't need to specify them at all.

• XShift allows shifting the chart past the last bar (for example displaced moving averages or projections into the future)

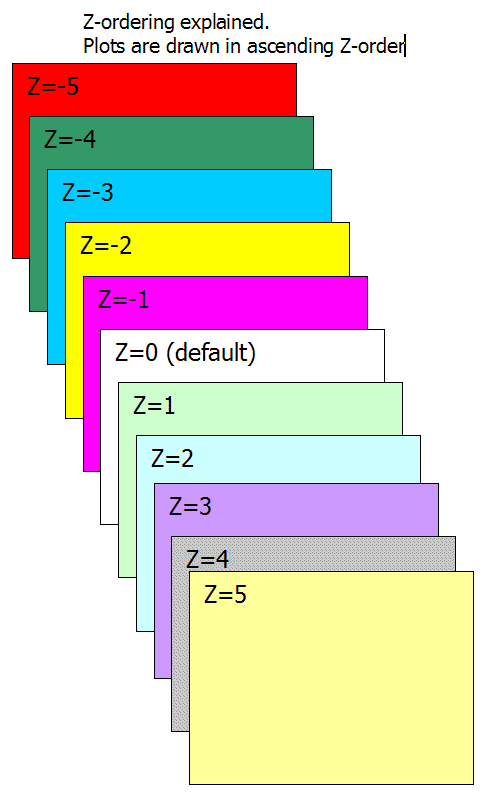

• ZOrder - defines the Z-axis position of a given plot. The default is zero. ZOrder = 0 is also where the "grid" is located. So if you want to plot BEHIND the grid you need to specify a negative ZOrder parameter. Plots are drawn in the following order:
  ZOrder parameter takes precedence over the order of calling Plot() functions, so if Z-Order is set, it determines the plotting order. See this picture. If multiple plots use the same Z-Order parameter, they are plotted in reverse call order (the ones that appear last in the code are plotted first). This rule can be changed by the already existing switch `graphzorder = 1` which, when specified, reverses this behavior (so plots are drawn in call order). Please note that the above applies to each ZOrder "layer" separately (so within the same ZOrder "layer," the reverse call rule applies)

• width - (new in 5.60) defines pixel or percent width of a given plot. The default is 1 pixel. Positive values specify PIXEL width, negative values specify width as a percentage of current bar width. For example, -20 will give you a dynamic width that is 20% of the bar width.

An example, the following single function call plots an RSI indicator with a red color line:

Plot( RSI(14), "My RSI", colorRed );

As you can see, we have provided only the first three (required) parameters. The first parameter is the array we need to plot. In our example, it is the RSI(14) indicator. The second parameter is just the name. It can be any name you want. It will be displayed in the title line along with the indicator value as shown in the picture below:

The third parameter is the color. To specify the plot color, you can use one of the following pre-defined constants:

You can easily plot multi-colored charts using both Plot functions. All you need to do is to define an array of color indexes.
In the following example, MACD is plotted with green when it is above zero and with red when it is below zero.

dynamic_color = IIf( MACD() > 0, colorGreen, colorRed );
Plot( MACD(), "My MACD", dynamic_color  );

In addition to defining the color, we can supply the 4th parameter that defines the style of the plot. For example, we can change the previous MACD plot to a thick histogram instead of a line:

dynamic_color = IIf( MACD() > 0, colorGreen, colorRed );
Plot( MACD(), "My MACD", dynamic_color, styleHistogram | styleThick  );

As you can see, multiple styles can be combined together using | (binary OR) operator. (Note: the | character can be typed by pressing the backslash key '\' while holding down the SHIFT key). The resulting chart looks like this:

To plot a candlestick chart, we use the styleCandle constant, as in this example:

Plot( Close, "Price", colorBlack, styleCandle );

To plot traditional bars with color (green up bars and red down bars), we just specify the color depending on the relationship between open and close prices and styleBar in style argument:

Plot( Close, "Price", IIf( Close > Open, colorGreen, colorRed ), styleBar | styleThick );

All available style constants are summarized in the table below.

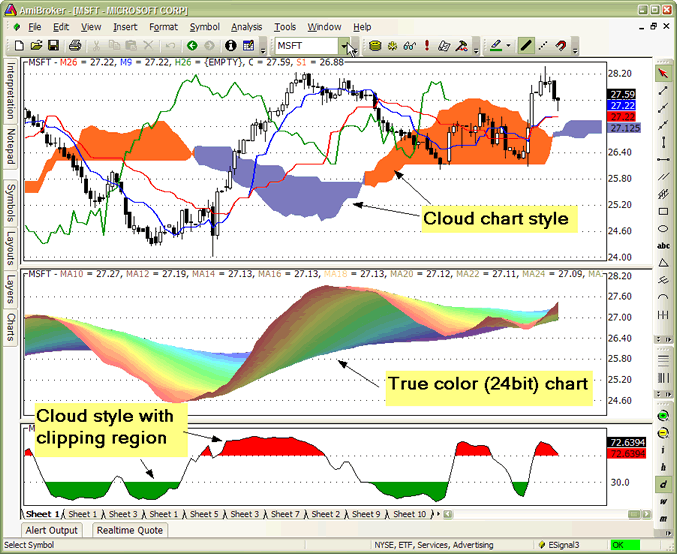

The new `styleCloud` and `styleClipMinMax` styles bring new, interesting possibilities shown in the sample image below:

The formula for the chart in the middle pane (rainbow 24-bit multiple moving averages) looks as follows:

side = 1;
increment = Param("Increment",2, 1, 10, 1 );
for( i = 10; i < 80; i = i + increment )
{
 up = MA( C, i );
 down = MA( C, i + increment );

 if( ParamToggle("3D effect?", "No|Yes", 1 ) )
   side =  IIf(up<=down AND Ref( up<=down, 1 ), 1, 0.6 );

 PlotOHLC( up,up,down,down, "MA"+i, ColorHSB( 3*(i - 10),
           Param("Saturation", 128, 0, 255 ),
           side * Param("Brightness", 255, 0, 255 ) ), styleCloud | styleNoLabel );
}


The formula for the chart in the lower pane (slow stochastic %K with colored tops and bottoms) looks as follows. It uses `styleClipMinMax` to achieve clipping of the cloud region between minimum and maximum levels specified in the plot statement. Without this style, the area between min/max would be filled. Please note that due to Windows GDI limitation, clipping region (`styleClipMinMax`) is supported only on raster (bitmap) devices, so it is not compatible with printers or WMF (Windows Metafile) output.

SetChartOptions(0,0,ChartGrid30 | ChartGrid70 );
r = StochK(14);
Plot( r, "StochK", colorBlack );
PlotOHLC( r,r,50,r, "", IIf( r > 50, colorRed, colorGreen ), styleCloud | styleClipMinMax, 30, 70 );


X-shift feature

The XShift parameter allows to displace (shift) the plot in the horizontal direction by a specified number of bars. This allows for plotting displaced moving averages and projections into the future. See the following sample code for a displaced moving average:

Periods = Param("Periods", 30, 2, 100 );
Displacement = Param("Displacement", 15, -50, 50 );

Plot( MA( C, Periods ), _DEFAULT_NAME(), ColorCycle, styleLine, 0, 0, Displacement );

PlotForeign() function

It is now easy to overlay price plots of multiple symbols using the `PlotForeign` function:

PlotForeign( tickersymbol, name, color/barcolor, style = styleCandle | styleOwnScale, minvalue = {empty}, maxvalue = {empty}, xshift = 0)

Plots the foreign-symbol price chart (the symbol is defined by the tickersymbol parameter). The second argument, name, defines the graph name used for displaying values in a title bar. Graph color could be static (if the third argument is a number) or dynamic (when the third argument is an array). Color indexes are related to the current palette (see Preferences -> Colors)
style defines the chart plot style (see Plot() function for possible values)

PlotForeign( "^DJI", "Dow Jones", colorRed );
PlotForeign( "^NDX", "Nasdaq 100", colorBlue );
PlotForeign( "^IXIC", "Nasdaq Composite", colorGreen );

Multiple plots using different scaling

Two new styles can be used to plot multiple graphs using different Y-scales: `styleOwnScale` and `styleLeftAxisScale`.

It also makes it easy to plot two or more "own scale" plots with the same scaling:

minimum = LastValue( Lowest( Volume ) );
maximum = LastValue( Highest( Volume ) );

Plot( Close, "Price", colorBlue, styleCandle );

/* two plots below use OwnScale but the scale is common because we set min and max values of Y axis */
Plot( Volume, "Volume", colorGreen, styleHistogram | styleThick | styleOwnScale, minimum, maximum );
Plot( MA( Volume, 15 ), "MA volume", colorRed, styleLine | styleOwnScale, minimum, maximum );

The new style `styleLeftAxisScale = 65536` - allows to plot more than one graph using common scaling but different from the regular (right-axis) scale.
Example: price plot plus volume and moving average plots:

// Plot price plot and its moving average
Plot( Close, "Price", colorWhite, styleCandle );
Plot( MA( Close, 20 ), "MAC", colorRed );

// Now plot volume and its moving average using left-hand axis scaling
Plot( Volume , "Volume", colorBlue, styleLeftAxisScale | styleHistogram | styleThick );
Plot( MA( Volume,15), "MAV", colorLightBlue, styleLeftAxisScale );

New parameters also make it easy to plot ribbons, for example:

Plot( Close, "Price", colorBlue, styleCandle );
Plot( 2, /* defines the height of the ribbon in percent of pane width */
"Ribbon",
IIf( up, colorGreen, IIf( down, colorRed, 0 )), /* choose color */
styleOwnScale|styleArea|styleNoLabel, -0.5, 100 );

Using custom-defined parameters

AmiBroker allows for the creation of user-defined parameters. Such parameters are then available via the Parameters dialog for quick and fast adjustment of indicators.

The most often used parameter functions are (click on the links to get a more detailed description):

• Param( "name", default, min, max, steps, incr = 0 )
• ParamStr( "name", "default" );
• ParamColor( "name", defaultcolor );
• ParamStyle(''name'', defaultval = styleLine, mask = maskDefault )


These functions make it possible to define your own parameters in your indicators. Once `Param` functions are included in the formula, you can right-click over the chart pane and select "Parameters" or press Ctrl+R, and change them via the Parameters dialog to get an immediate response.

The simplest case looks like this:

period = Param("RSI period", 12, 2, 50, 1 );
Plot( RSI( period ), "RSI( " + period + ") ", colorRed );

Right-click over the chart and choose "Parameters" and move the slider and you will see RSI plotted with different periods immediately as you move the slider.

Sample code below shows how to use ParamStr to get the ticker symbol and ParamColor to get colors.

ticker = ParamStr( "Ticker", "MSFT" );
sp = Param( "MA Period", 12, 2, 100 );
PlotForeign( ticker, "Chart of "+ticker,
             ParamColor( "Price Color", colorBlack ), styleCandle );
Plot( MA( Foreign( ticker, "C" ), sp ), "MA", ParamColor( "MA Color", colorRed ) );

The following sample formula (from the AmiBroker mailing list) that allows you to visually align price peaks/troughs with a sine curve on the chart:

Cycle = Param("Cycle Months", 12, 1, 12, 1 )*22;//264==12mth,22==1mth
xfactor = Param("Stretch",1,0.1,2,0.1);//1==1yr,2==2yr
xshift = Param("slide",0,-22,22,2)/3.1416^2;//slide curve 1==5days

x = 2*3.1416/Cycle/xfactor;
y = sin(Cum(x)-xshift);

Plot(C,"Daily Chart", colorBlack, styleCandle | styleNoLabel);
Plot(y,
 "cycle =" + WriteVal(Cycle*xfactor/22,1.0)+"months",
 colorBlue,styleLine|styleNoLabel|styleOwnScale);

Right-click over the chart and choose "Parameters" and move the sliders and you will see the chart immediately reflecting your changes.

For more information on user-definable parameters, please also check Tutorial: Using drag-and-drop interface

Plotting texts at arbitrary positions on the chart

AmiBroker now allows for annotation of the chart with text placed at any x, y position specified on the formula level using the new PlotText function.

PlotText( "text", x, y, color, bkcolor = colorDefault )

where
x - the x-coordinate in bars (like in LineArray)
y - the y-coordinate in dollars

Color is the text color; bkcolor is the background color. If bkcolor is NOT specified (or is equal to `colorDefault`), text is written with a TRANSPARENT background; any other value causes a solid background with the specified background color

Plot(C,"Price", colorBlack, styleLine );
Plot(MA(C,20),"MA20", colorRed );

Buy=Cross( C, MA(C,20 ) );
Sell= Cross( MA( C, 20 ), C );

dist = 1.5*ATR(10);

for( i = 0; i < BarCount; i++ )
{
if( Buy[i] ) PlotText( "Buy\n@" + C[ i ], i, L[ i ]-dist[i], colorGreen );
if( Sell[i] ) PlotText( "Sell\n@" + C[ i ], i, H[ i ]+dist[i], colorRed, colorYellow );
}

PlotShapes( Buy * shapeUpArrow + Sell * shapeDownArrow, IIf( Buy, colorGreen, colorRed ) );

Gradient fill of the background

AmiBroker 4.90 allows filling the indicator background with a gradually changing color. To achieve this, you need to use the new function `SetChartBkGradientFill`( topcolor, bottomcolor, titlebkcolor = default )

The function enables background gradient color fill in indicators.
Please note that this is independent of the chart background color (background color fills the entire pane; gradient fill is only for the actual chart interior, so the axes area is not affected by gradient fill). Parameters are as follows:

topcolor - specifies the top color of the gradient fill
bottomcolor - specifies the bottom color of the gradient fill
titlebkcolor - (optional) the background color of the title text. If not specified, then the top color is automatically used for the title background.

Example:

SetChartBkGradientFill( ParamColor("BgTop", colorWhite),ParamColor("BgBottom", colorLightYellow));

Gradient fill area charts

Version 5.60 brings native gradient area charts. To display a simple gradient chart, it is enough to use styleGradient in the Plot() function call. By default, the upper gradient color is specified by the color parameter in Plot() function; the bottom gradient color is either the background color. `styleGradient` can be combined with `styleLine`.

Plot( C, "C", colorDefault, styleGradient | styleLine );

For detailed control over gradient colors and baseline, there is an extra function SetGradientFill( topcolor, bottomcolor, baseline, baselinecolor ) that should be called before Plot().

When you use SetGradientFill function, the upper gradient color is specified by the topcolor argument; the bottom gradient color is specified by bottomcolor. Optional parameters (baseline/baselinecolor) allow for a reverse gradient chart (such as underwater equity) and three-color gradients top->baseline->bottom. See code for Underwater Equity for example usage of reverse gradient chart (with baseline at the top). The Baseline parameter specifies the Y-axis position of the chart baseline. The baselinecolor parameter specifies the color of the gradient that is to be used at that level. If baselinecolor is not specified, then only 2-color gradient is plotted (topcolor->bottomcolor).

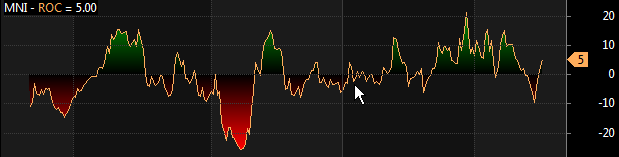

For example, to display a three-color gradient Rate of Change that will use green as the "top" color for positive values, the background color as the "baseline" color and red as the "bottom" color for negative values, it is enough to write:

SetGradientFill( colorGreen /*top*/, colorRed /*bottom*/, 0 /*baseline level*/, GetChartBkColor() /*baseline color */);
Plot( ROC( C, 14), "ROC", colorLightOrange, styleLine | styleGradient, Null, Null, 0, -1  );

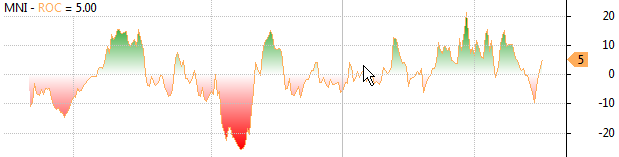

The resulting chart will look as follows (using Basic chart theme):

Super thick charts

Version 5.60 allows defining the line width beyond `styleThick` that was the only option before.

Now, the 9th parameter of Plot() defines pixel or percent width of a given plot. The default is 1 pixel. Positive values specify pixel width, negative values specify width as a percentage of current bar width. For example, -20 will give you a dynamic width that is 20% of the bar width. Example:

Plot( C, "Close", colorDefault, styleBar, Null, Null, 0, 1, -20 /* line width as percent of bar */ );

As you zoom in, the bars will become thicker and thicker.

Now you can get super-thick lines as shown in the example below (10-pixel thick line chart):

Plot( C, "Close", colorRed, styleLine, Null, Null, 0, 1, 10 /* 10 pixel wide */ );

Miscellaneous

As you already know, each plot has its own name that is used to create a title string which displays names and values of indicators. AmiBroker, however, allows you to override this automatic mechanism and define your own title string from scratch. The Title reserved variable is used for that. You just assign a string to it, and it will be displayed in the chart instead of the automatically generated one.

Also, there are two more reserved variables (GraphXSpace and GraphZOrder) that allow for fine-tuning the indicator's look.

They are all described in the table below.

Obsolete graph variables

This table shows obsolete reserved variables. They are still functional for backward-compatibility, but new code should use `Plot()` functions only. What's more, when using new `Plot()` functions, you should NOT use obsolete variables below.
